| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Automatic Hard Candy Depositing Line | Compressed Air Pressure: | 0.4-0.6 Mpa |
|---|---|---|---|
| Dimension(L*W*H): | 9m | Power(W): | 8kw |
| Automatic Grade: | Automatic | Production Capacity: | 150kg/h |
| Voltage: | 380V | Weight: | Approx.3000 |
| Feature: | High Productivity | Rated Depositing Times: | 20~25n/min |
| Highlight: | 150kg/h Hard Candy Making Machine,Hard Candy Depositing Line,8kw Automatic Candy Making Machine |
||

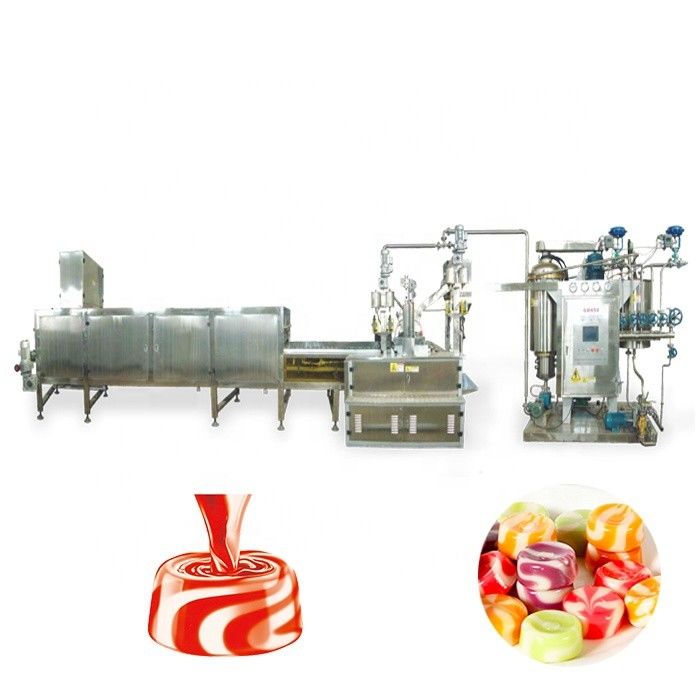

Deposited Hard Candy Production Line
Product Parameters
|
Model |
GD150 |
GD300 |
GD450 |
GD600 |
GD1200 |
|
Capacity |
150kg/h |
300kg/h |
450kg/h |
600kg/h |
1200kg/h |
|
Candy weight |
As per the candy size |
||||
|
Depositing Speed |
55-65n/min |
||||
|
Steam requirement |
250kg/h, 0.5-0.8MPa |
300kg/h, 0.5-0.8MPa |
400kg/h, 0.5-0.8MPa |
500kg/h, 0.5-0.8MPa |
650kg/h, 0.5-0.8MPa |
|
Compressed air requirement |
0.2m3/min, 0.4-0.6MPa |
0.2m3/min, 0.4-0.6MPa |
0.25m3/mi,0.4-0.6MPa |
0.3m3/min, 0.4-0.6MPa |
0.45m3/min, 0.4-0.6MPa |
|
Working condition |
Temperature 20℃-25℃；Humidity45-55% |
||||
|
Electric power needed |
18kW/380V |
27kW/380V |
34kW/380V |
40kW/380V |
48kW/380V |
|
Total Length |
15m |
17m |
17m |
20m |
22m |
|
Weight of machine |
3500kg |
4000kg |
4500kg |
5000kg |
7500kg |
Advantages
1. PLC/computer process control available;
2. An LED touch panel for easy operating;
3. The standard production capacity is from 150kg/h to 1200kg/h;
4. The main parts are made of hygienic Stainless Steel;
5. Optional(mass) flowing controlled by Frequency inverters;
6. In-line ingection, dosing and pre-mixing techniqued for the proportional addition of liquid;
7. Dosing pumps for the automatic injection of colors, flavors and acids;
8. "Two-color stripe depositing", "two colour double layers depositing", "central filling", "clear" "butterscotch" "sugar free" hard candies etc. can be made.
9. Moulds can be made according to the candy samples provided by the customer.
