| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Gummy Candy Production Line | Dimension: | 17000*1700*2400mm |
|---|---|---|---|
| Material: | 304 Stainless Steel | Product Type: | Candy |
| Power(W): | 45KW | Power: | 8KW |
| Weight: | 4000kg | Voltage: | 380V |
| Application: | Gummy Candy | ||
| Highlight: | 450kg/hr Gummy Candy Production Line,Gummy Candy Depositing Line,Automatic Gummy Candy Making Machine |
||

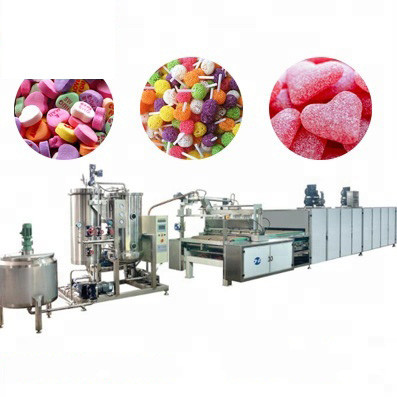

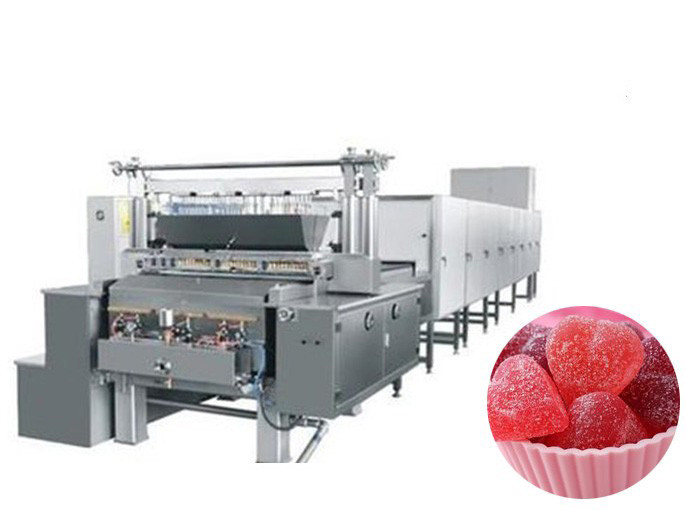

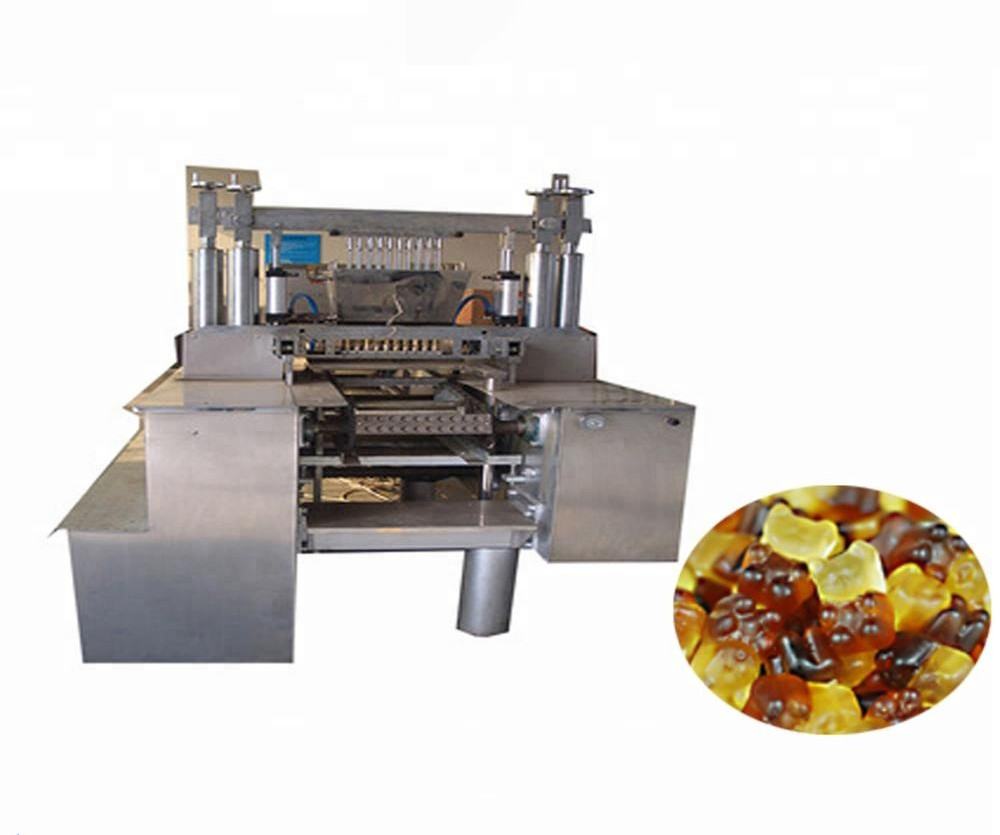

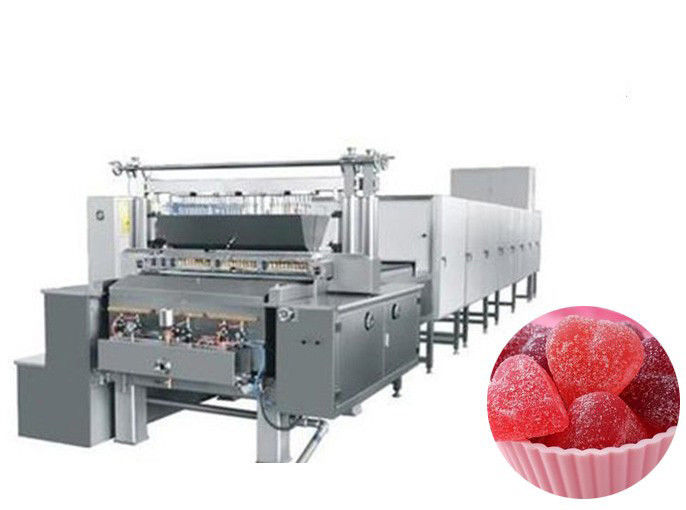

Fully Automatic Jelly Gummy Candy Depositing Line
1. Parameters:
| Model | SEQ150 | SEQ300 | SEQ450 | SEQ600 |
| Capacity | 150kg/hr | 300kg/hr | 450kg/hr | 600kg/hr |
| Candy Weight | as per the candy size | |||
| Depositing Speed | 45 ~55n/min | 45 ~55n/min | 45 ~55n/min | 45 ~55n/min |
| Working Condition |
Temperature:20~25℃; Humidity:55% |
|||
| Total power | 35Kw/380V | 40Kw/380V | 45Kw/380V | 50Kw/380V |
| Total Length | 18m | 18m | 18m | 18m |
| Gross Weight | 3000kg | 4500kg | 5000kg | 6000kg |
Application:
SE Series Jelly gummy candy depositing line is an advanced and continuous plant which is independent researched by our company for making high quality different sizes, multiple colors,center filling jelly candies (QQ candies) by replacing moulds or depositor head. The whole line consists of jacket dissolving tank, jelly mass cooker and storage tank, depositing machine, cooling tunnel, conveyor, sugar coating machine (optional), surface polishing machine (optional). It can be applied for all kinds of jelly-based material production, such as gelatin, pectin, carrageenan, acacia gum etc. Automated production not only save time, labor and space but also reduce the production cost. Electrical heating system is optional.
