| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Lollipop Candy Production Line | Power(W): | 18-42kW |
|---|---|---|---|
| Weight: | 4000-5000kg | Voltage: | 380V |
| Output(kg/h): | 150-600kg/h | Compressed Air Pressure: | 0.4-0.6MPa |
| Dimension(L*W*H): | As Per Type | Feature: | High Efficiency / Durable |
| Forming Type: | Working Stable | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory |
| Material: | Stainless Steel | ||
| Highlight: | Galaxy Lollipop Manufacturing Equipment,Galaxy Lollipop Manufacturing Machine,600kg/h Lollipop Candy Making Machine |
||

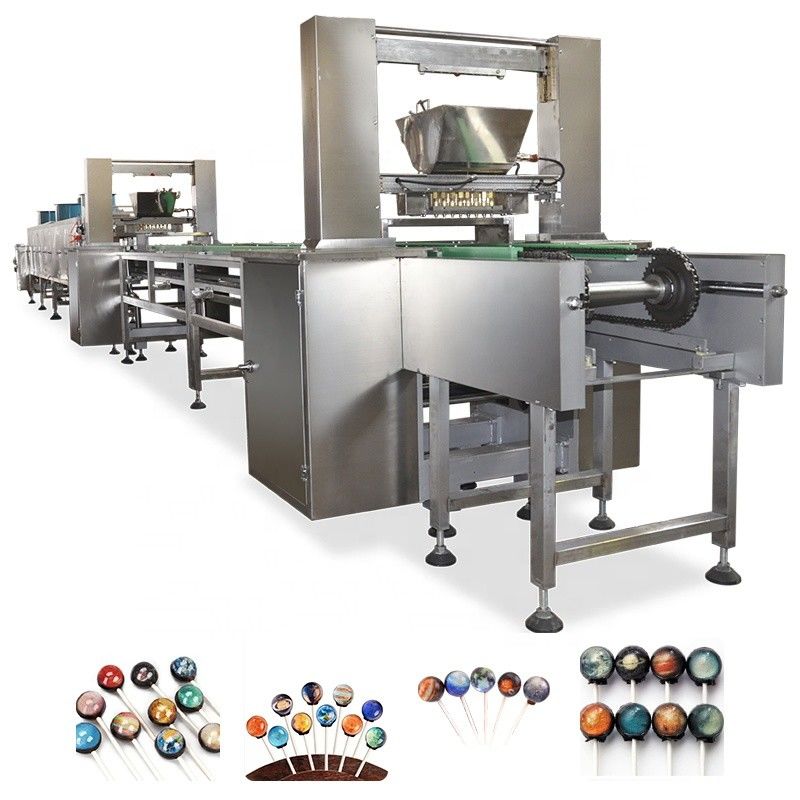

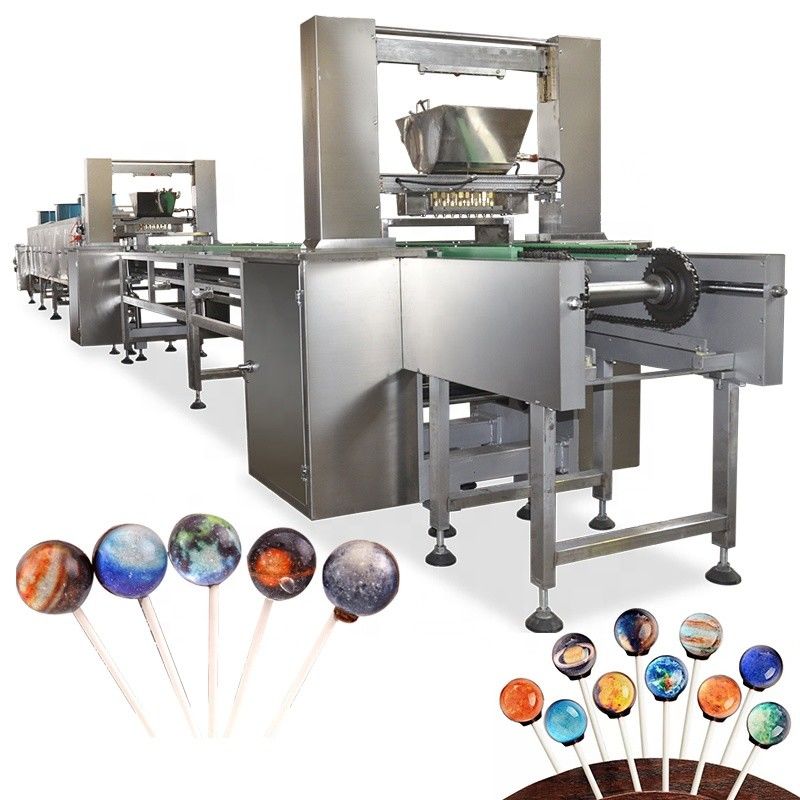

Galaxy Lollipop Candy Making Machine
Description
This Lollipop candy making machine depositing line is designed base on the hard candy depositing line, with more than 20 years’ experience of candy depositor fabricating. It is an advanced production equipment which can continuously produce various kinds of star lollipops under a strict sanitary condition.
This whole line is produced according to GMP standard of food machinery; it is not only an ideal equipment which can produce out quality products with the saving of both the manpower and the space occupied ,but also help the candy manufacturer pass the GMP,HACCP,QS authentication easily.
Feature
1. The Lollipop candy making machine processing line is an advanced plant for producing various shapes and colors of gelatin or pectin based soft candies.
2. It is an ideal equipment for continuous production of high quality candies, such as single/double color candy.
By replacing the mould for the depositing head, it can produce jelly candy of various shapes and different colors.
3. It can automatically blend the essence, pigment, acid liquor in accurate quantity ratio.
Product Parameters
|
Model
|
GD150B
|
GD300B
|
GD450B
|
GD600B
|
|
Output(kg/h)
|
150
|
300
|
450
|
600
|
|
Max candy weight
|
As per candy size
|
|||
|
Speed
|
25-30n/min
|
|||
|
Steam consumption
Steam pressure
|
250kg/h, 0.5-0.8MPa
|
300kg/h, 0.5-0.8MPa
|
450kg/h, 0.5-0.8MPa
|
600kg/h, 0.5-0.8MPa
|
|
Compressed consumption
|
0.2m3/min
|
0.2m3/min
|
0.25m3/min
|
0.25m3/min
|
|
Compressed air pressure
|
0.4-0.6MPa
|
|||
|
Electric power needed
|
18kw/380V
|
27kw/380V
|
34kw/380V
|
42kw/380V
|
|
Total length
|
17
|
19
|
19
|
22
|
|
Gross weight
|
3500kg
|
4000kg
|
4500kg
|
5000kg
|
