| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Toffee Candy Production Line | Diemension: | 17-18m |
|---|---|---|---|
| Power(W): | Depends On Models | Material: | 304 Stainless Steel |
| Output: | 150-600kg/hr | Usage: | Toffee Candy / Soft Candy |
| Voltage: | 380V | Weight: | Depends On Models |
| Model: | JYT150/300/450/600 | After-sales Service Provided: | Field Installation, Commissioning And Training |
| Highlight: | 600kg/hr Toffee Manufacturing Machine,Toffee Candy Production Line,Automatic Toffee Making Machine |
||

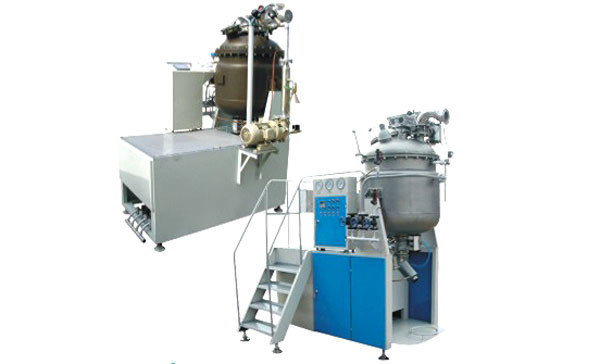

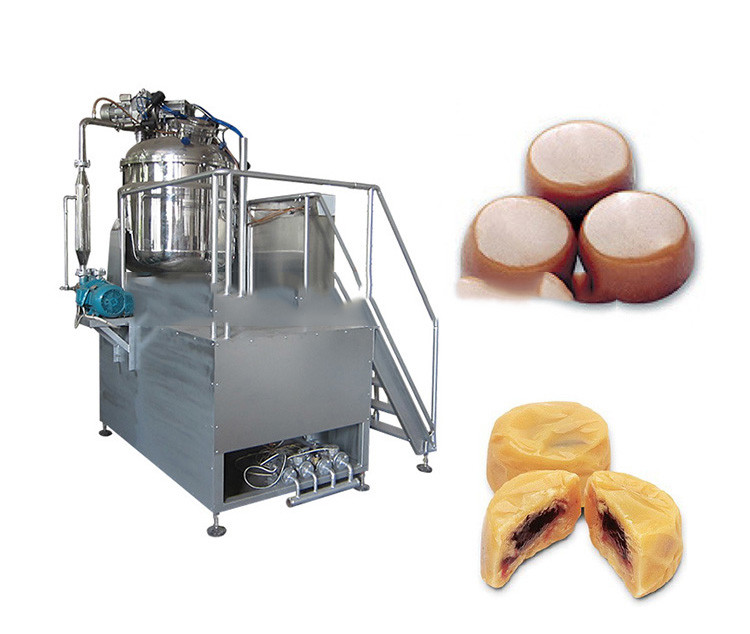

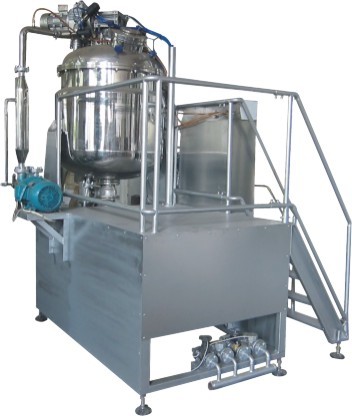

Toffee Candy Making Machine Production Line
Product Description
JYT series toffee candy production line is one of the main products of JUNYU MACHINERY. It was introduced and developed according to the demands of the customer.
This line is mainly composed of sugar dissolving tank, storage tank., specially toffee candy cooking, automatic depositing machine and cooling tunnel etc.
The strongpoint of the line is as following:
* PLC /computer process control available;
* An LED touch panel for easy operating;
* The production capacity from 150 kgs/h to 600kgs/h;
* Optional (mass) flowing controlled by Frequency inverters;
* In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid (milk); Dosing pumps for the automatic injection of colors, flavors and acids;.
* Moulds can be made according to the candies samples provided by the customer
| Model | JYT-150 | JYT-300 | JYT-450 | JYT-600 |
| Standard yield(kg/h) | 150 | 300 | 450 | 600 |
| Maximum sugar weight | 6 | 6 | 6 | 6 |
| Pouring speed(n/min) | 55~65 | 55~65 | 55~65 | 55~65 |
|
Steam demand
|
250kg/h 0.5~0.8MPa |
300kg/h 0.5~0.8MPa |
400kg/h 0.5~0.8MPa |
500kg/h 0.5~0.8MPa |
|
Compressed air demand
|
0.2m3/min 0.4~0.6MPa |
0.2m3/min 0.4~0.6MPa |
0.25m3/min 0.4~0.6MPa |
0.25m3/min 0.4~0.6MPa |
| Working environment |
Temp20~25℃ humidity55% |
Temp20~25℃ humidity55% |
Temp20~25℃ humidity55% |
Temp20~25℃ humidity55% |
| Total power | 32KW/380V | 39KW/380V | 48KW/380V | 75KW/380V |
| Full length | 17 | 17 | 18 | 18 |
| Total Weight | 3500 | 4000 | 4500 |
5000 |
