Beverage Factory Commerical Hard Jelly Candy Depositing Line

Basic Information
Place of Origin: China
Brand Name: OEM
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Export Standard Packing
Delivery Time: 15-25days
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Contact Now
Detail Information
Name: Jelly Candy Depositing Machine Material: Stainless Steel
Dimension(L*W*H): Customized Type: Automatic
Weight: 8000kg Voltage: 380V
Feature: Multifunctional, High Productivity Capacity: 150kg/h-60kg/h
Power: 150-450kw Application: Manufacturing Plant, Food & Beverage Factory
High Light:

jelly candy depositing line

,

Automatic Jelly Candy Production Line

,

Beverage Factory Candy Making Machine


Product Description

PLC Control Commerical Hard Jelly Candy Depositing Line



SE150/300/450/600 jelly candy depositing line is not only an ideal equipment which can produce products of good quality ,but also an advantage for the candy manufacturer to pass the GMP,HACCP,QS authentication easily.This line mainly consists of auto weighing and mixing system, dissolving tank, micro-film cooker, depositor and cooling machine and adopt the advanced servo system to control.



The advantage of the line is as following:


1. PLC/computer process control available;
2. An LED touch screen for easy operating;
3. The main part is made of stainless steel;
4. Molds can be made according to the candy samples provided by customer;
5. Exported to more than 20 countries(Vietnam and India etc)
6. 24 hours before and after sales

Mode

SE150

SE300

SE450

SE600

Capacity

150kg/h

300kg/h

450kg/h

600kg/h

Max candy weight

As per the candy size

Depositing speed

55-70n/min

55-70n/min

55-70n/min

55-70n/min

Steam requirement

250kg/h
0.5-0.8MPa

300kg/h
0.5-0.8MPa

450kg/h
0.5-0.8MPa

600kg/h
0.5-0.8MPa

Compressed air requirement

0.6m3/min
0.4-0.6MPa

0.6m3/min
0.4-0.6MPa

0.6m3/min
0.4-0.6MPa

0.6m3/min
0.4-0.6MPa

Working condition

Temp:20-25
Humidity:55%

Temp:20-25
Humidity:55%

Temp:20-25
Humidity:55%

Temp:20-25
Humidity:55%

Total power

18KW/380V

27KW/380V

34KW/380V

38KW/380V

Total length

15m

15m

17m

17m

Gross weight

3500kg

4000kg

4500kg

5000kg

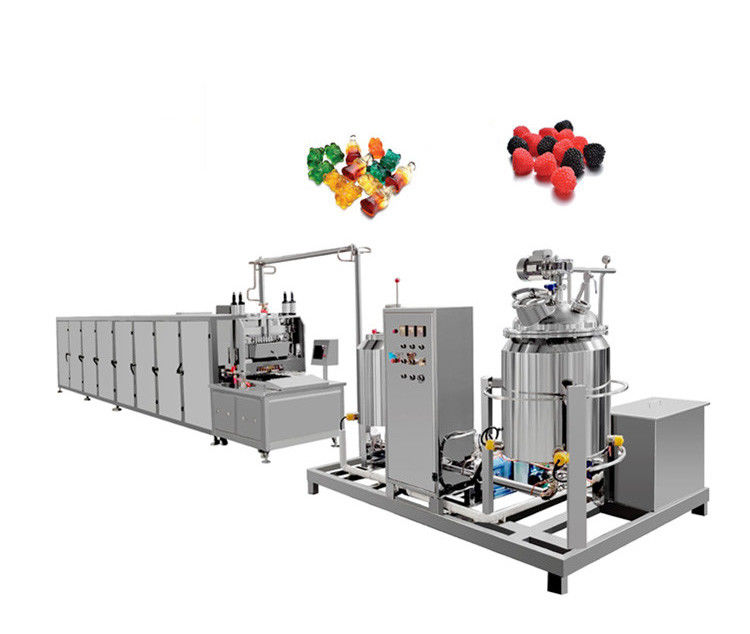

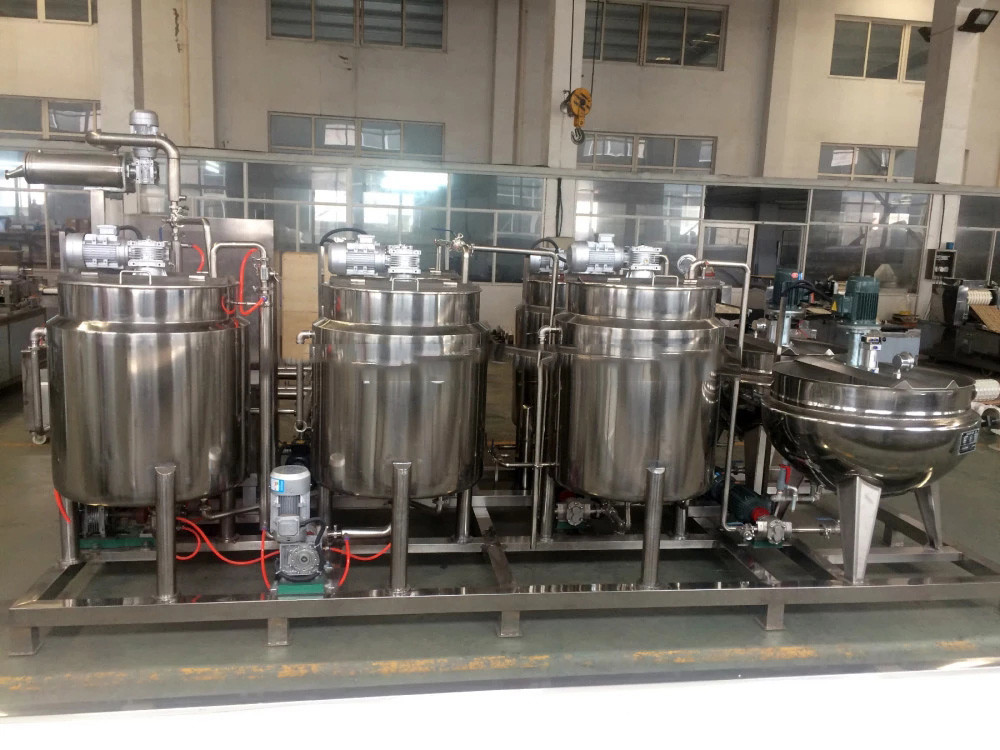

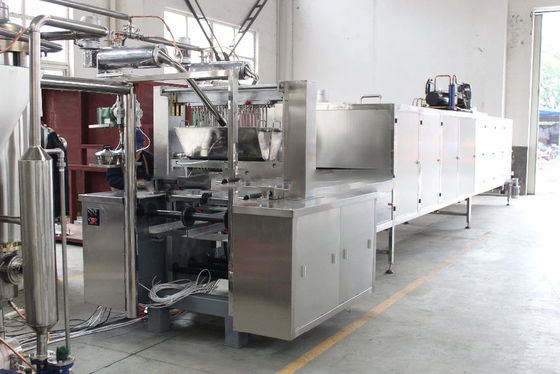

Beverage Factory Commerical Hard Jelly Candy Depositing Line 0Beverage Factory Commerical Hard Jelly Candy Depositing Line 1
