| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Automatic Plastic Bag Small Sweet Candy Packing Machine | Material: | Stainless Steel |
|---|---|---|---|
| Packing Speed: | 40-250bags/min | Voltage: | 220V |
| Automatic Grade: | Automatic | Packaging Material: | Plastic, Paper, Heat Seal Film |
| Dimension(L*W*H): | 4100x950x1500mm | Bag Type: | 3 Sides Seal |
| Function: | Filling, Wrapping, Capping, Sealing | Application: | Food, Commodity, Medical, Chemical, Machinery & Hardware |
| High Light: | Small Horizontal Pillow Packing Machine,Hard Candy Pillow Pack Machine,Horizontal Candy Pillow Pack Machine |
||

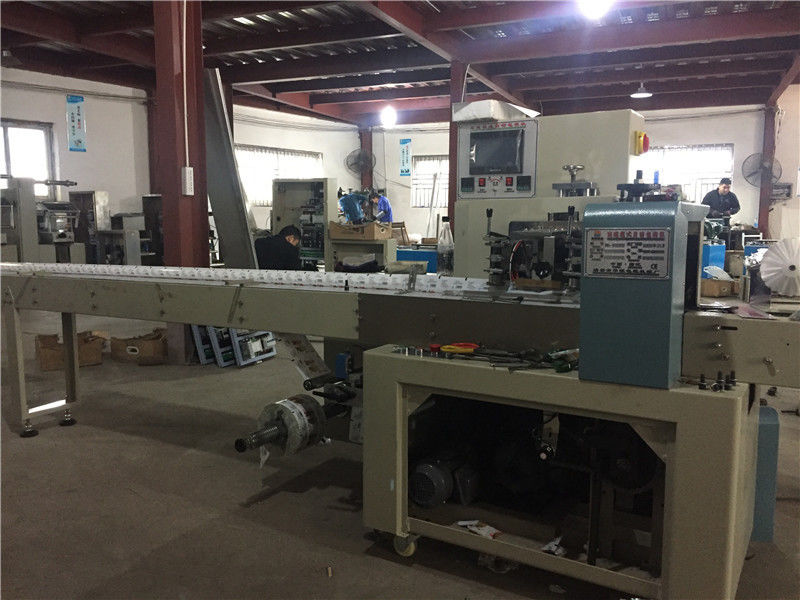

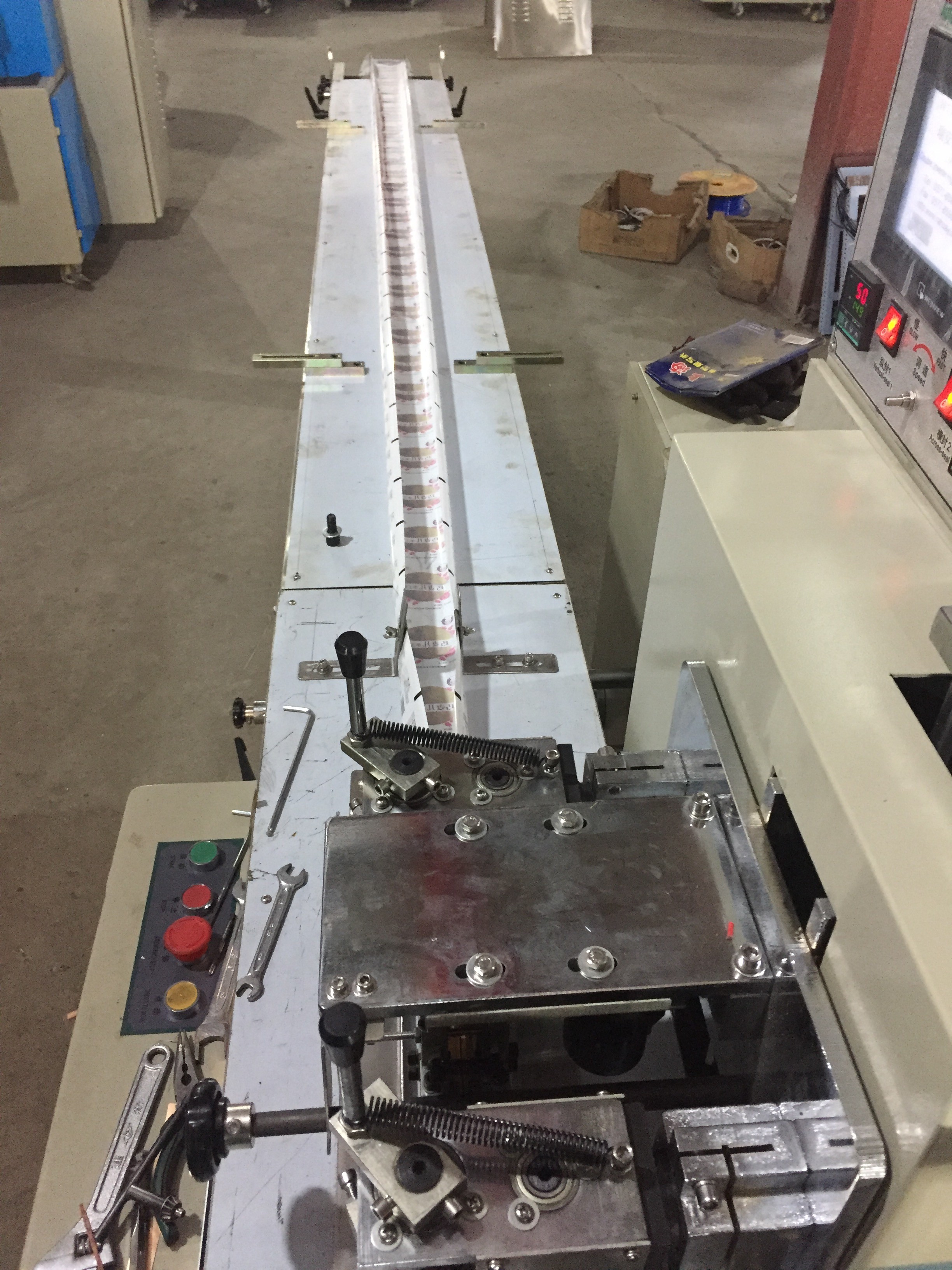

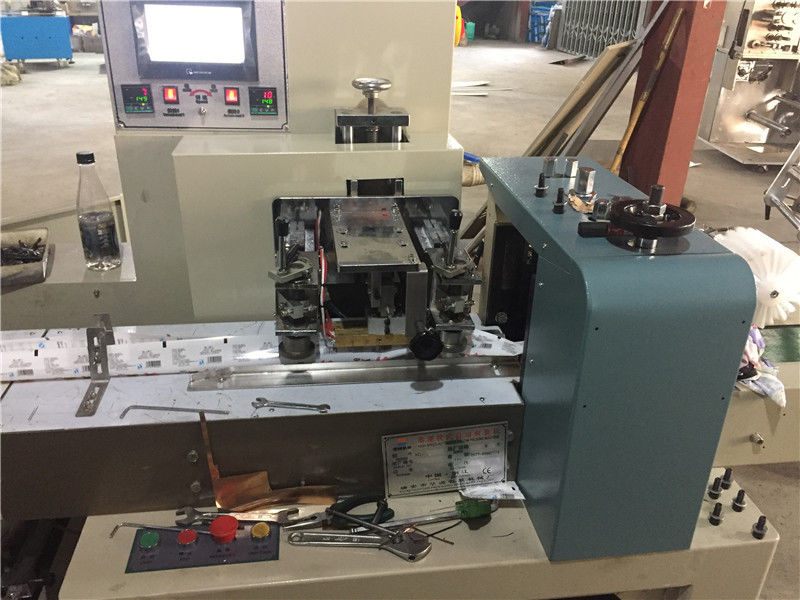

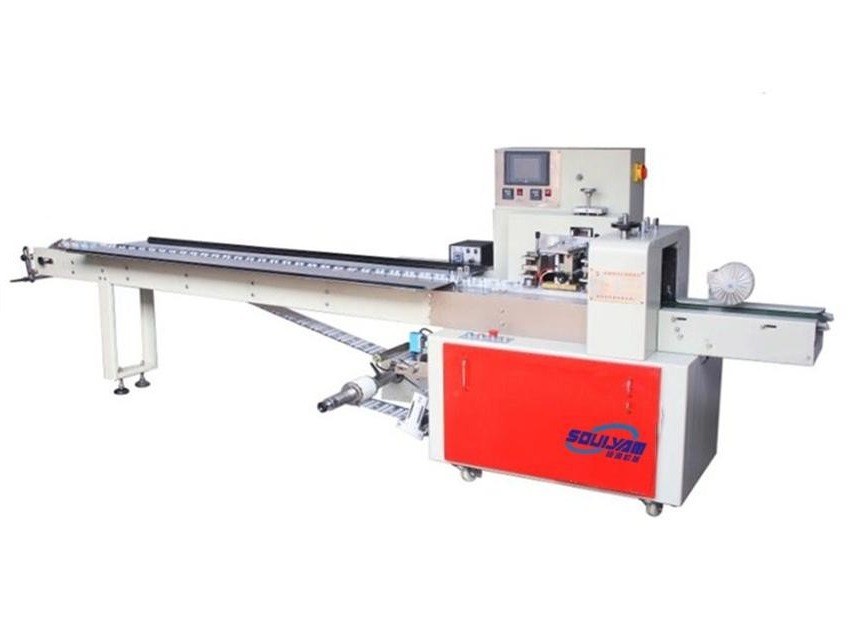

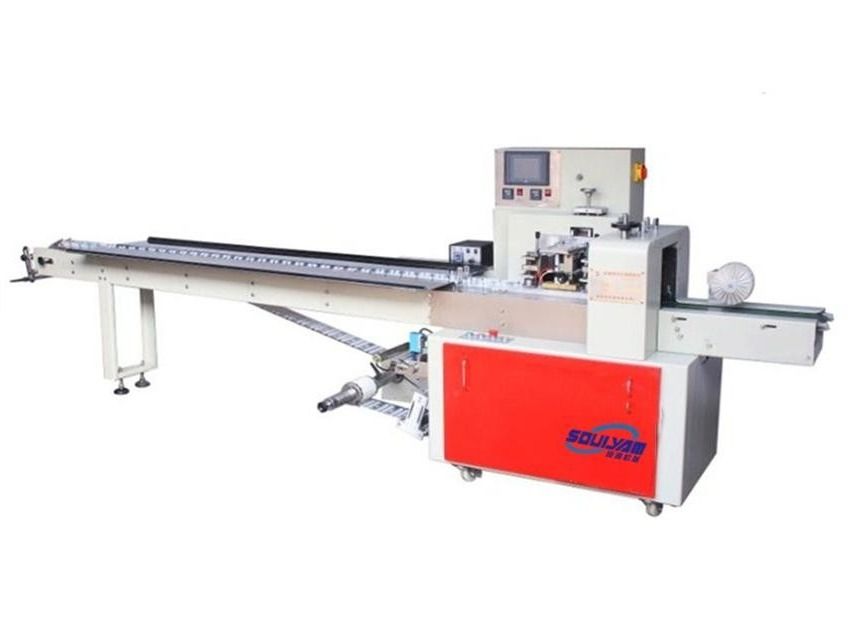

Small Horizontal Plastic Bag Hard Candy Pillow Pack Machine
Product Features
Compact structure, stable function and simple operation.
Double frequency converter controller,length of package will cut immediately once setting, adjustment needless, saving time and film.
It adopts imported electric appliance, touch manmachine interface, convenient parameter setting.
Self-cheching function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.
Dependant temperature PID controlling suitable for various materials of packagingmenbrane.Position stop function, no adhesive and no waste of membrane.
Clean rotation system, more reliableoperation and more convenient maintenance.
All the controlling operates by the software,convenience for function ad-justment and technical up grading.
Main Technical Data
|
Type |
KD-260 |
KD-350 |
KD-450 |
KD-600 |
|
Film width |
250MM |
350MM |
450MM |
590MM |
|
Bag Length |
65-330MM |
65-330MM |
110-350MM |
150-400MM |
|
Bag width |
30-120mm |
30-150MM |
50-200MM |
50-270MM |
|
Products High |
Max.45mm |
Max.50mm |
Max.80mm |
Max.100mm |
|
Packing speed |
40-220bag/mins |
40-220bag/min |
40-180bag/min |
50-120bag/min |
|
Power |
220V 50/60HZ 2.4KW |
220V 50/60HZ 2.4KW |
220V 50/60HZ 2.7KW |
220V 50/60HZ 4.2KW |
|
Machine size |
4000x920x1500 MM |
4100x1050x1560 MM |
4100x1050x1560 MM |
4200x1200x1750 MM |
|
Machine Weight |
500kg |
600kg |
680kg |
780kg |
