| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Chocolate Bar Making Machine | Machine Material: | 304 Stainless Steel |
|---|---|---|---|
| Dimension(L*W*H): | 18000*1500*1900mm | Weight: | 4000kg |
| Type: | Fully Automatic | Function: | Multifunctional |
| Voltage: | 380V | Applicable Industries: | Snack Food Factory |
| High Light: | Fully Automatic Chocolate Candy Making Machine,Stainless Steel Chocolate Bar Production Machines,Candy Snack Food Making Machine |
||

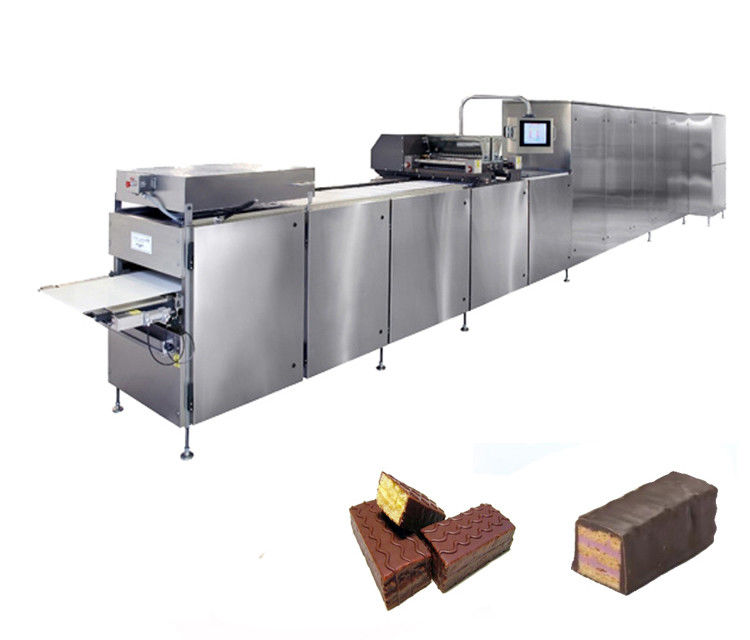

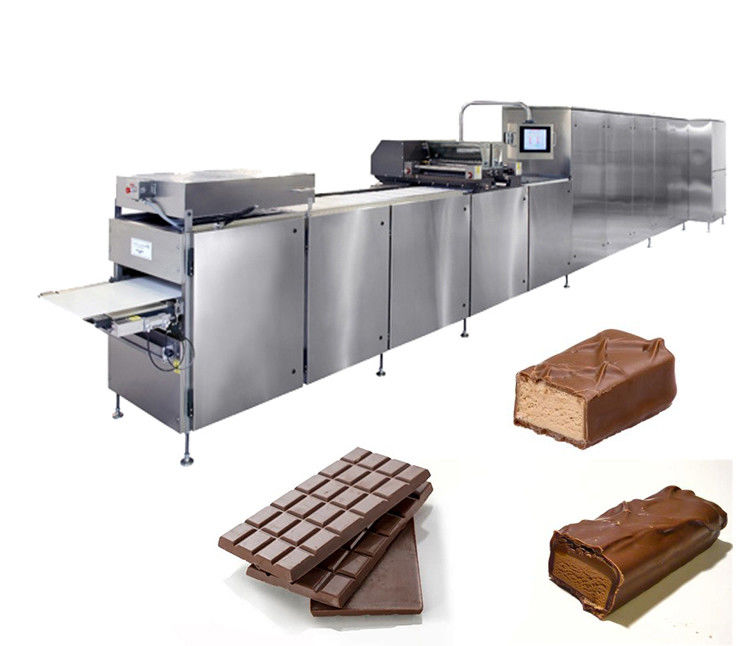

Multifunctional Fully Automatic Chocolate Candy Making Machine
This Chocolate Candy Making Machine is a high tech full automatic chocolate machine for chocolate molding. The production process include mould heating, chocolate depositing, mould vibrating, mould conveying, cooling and demolding. This line has been widely applied in production of pure solid chocolate, center filled chocolate, double-colored chocolate, particle mixed chocolate, biscuit chocolate,etc.
Product Parameters
|
Model |
LST-1000 |
|
Production capacity( kg/shift) |
200~700 |
|
Speed of stroke( n/min) |
6~12 |
|
Mould heating and fan power |
6kw |
|
Mould temperature |
24~45 |
|
Vibrating motor power |
1.1kw |
|
Vibrating time |
30~60s |
|
Depositing motor power |
1.5kw |
|
Stirring motor power |
0.5kw |
|
Circulating hot-water power |
4.5kw |
|
Circulating pipe water pump power |
0.5kw |
|
Mould size and numbers needed |
300x225x30mm |
|
100pieces needed |
|
|
Compressed air consumption |
2.5m3/min |
|
Compressed air pressure |
0.65Mpa |
|
Gross weight (kg) |
800 |
|
Dimension |
1.Mould heating unit: L1700xW1045xH950mm |
|
2.Depositing unit: L1575xW1045xH1130mm |
|
|
3.Vibrating unit: L1500xW1045xH850mm |
Main Features & Advantages
1. Full automatic PLC controlled,highly stable and reliable. Servo system not only minimize the maintenance cost and contamination to products, but also realize a more stable and bigger center filling.
2. The Beckhoff Remote Control System from Germany enables us to modify system parameters,diagnosis & troubleshooting on line, which is not only easy and fast, but also cost-saving.
3. There are a lot of add-on devices can be attached to this production line, such as Auto Biscuits Feeder, Auto Wafer Feeder, Auto Sprinkler,etc. Customers can choose these add-on devices accordingly and add or change the add-on devices for new product whenever needed.
4. The high configuration production line can be combined by all kind of parts, and these parts can be separated and recombined with some other parts to makes another production line for different products.
5. There are single depositor,double depositor or more to meet different product production need. The special mechanism of the depositor device makes the installation, takedown and switch of the depositor EASY & FAST. It only takes a very short time to clean the depositor or switch to another depositor.
6. To produce different kinds of chocolate products, you only need to change a depositor or the chocolate
syrup distribution plate that used with the depositor.
7. The mobile depositor enables the mobile mould-follow-depositing function, which greatly increase the output of the production line by 20%.
8. With plastic guide-rail protection, the chain ill not contact with spilled chocolate,which meets the overall food hygiene requirements.
