| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Hard Candy Depositing Machine | Automatic Grade: | Automatic |
|---|---|---|---|
| Production Capacity: | 150-600kg/h | Material: | 304 Stainless Steel |
| Dimension(L*W*H): | 17-18m | Power(W): | Depends On Models |
| Voltage: | 380V | Weight: | 2000-5000Kg |
| Function: | Single Color/Double Colors/Filled Hard Candy | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory |
| High Light: | Complete Hard Candy Depositing Machine,Hard Candy Depositing Line,Hard Candy Depositing Machine |
||
Beverage Factory Complete Hard Candy Depositing Machine
Product Description

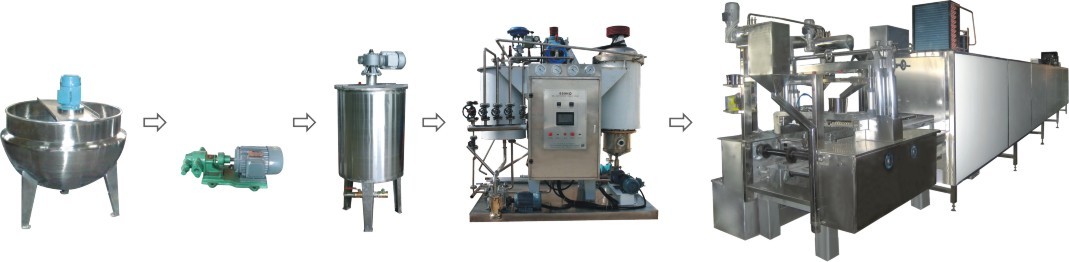

JYH150/300/450/600 hard candy depositing line is a compact unit which can continuously produce various kinds of hard candies under a strict sanitary condition. It is also an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied.
Characteristics:
1, PLC automatic programming control vacuum sugar temperature, time, pouring temperature and pouring speed;
2, Large LED touch screen is more easy to operate.
3. The production capacity can be from 150 kg to 600 kg per hour.
4, VVVF control solution flow;
5, complete the quantitative injection of essence, pigment and acid on line.
6, transport chain double stripping mechanism and cooling system, ensure release;

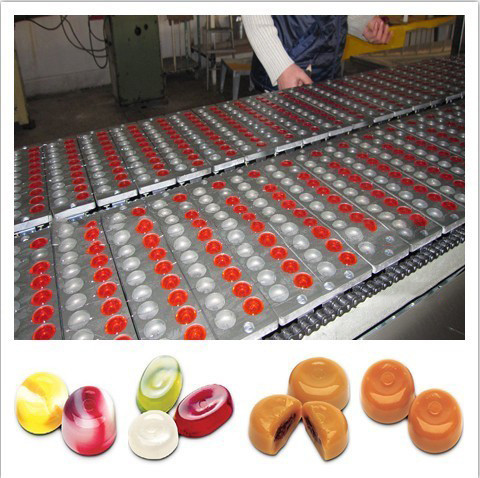

7, according to the different mold can produce various shapes of candy;
8, optional chocolate quantitative filling system can produce chocolate candy sandwich.
9. The whole production line is made according to standard, which meets the requirements of food hygiene.
| Model | JYH-150 | JYH-300 | JYH-450 | JYH-600 |
| Standard yield(kg/h) | 150 | 300 | 450 | 600 |
| Maximum sugar weight | 6 | 6 | 6 | 6 |
| Pouring speed(n/min) | 55~65 | 55~65 | 55~65 | 55~65 |
|
Steam demand
|
250kg/h 0.5~0.8MPa |
300kg/h 0.5~0.8MPa |
400kg/h 0.5~0.8MPa |
500kg/h 0.5~0.8MPa |
|
Compressed air demand
|
0.2m3/min 0.4~0.6MPa |
0.2m3/min 0.4~0.6MPa |
0.25m3/min 0.4~0.6MPa |
0.25m3/min 0.4~0.6MPa |
| Working environment |
temp20~25℃ humidity55% |
temp20~25℃ humidity55% |
temp20~25℃ humidity55% |
temp20~25℃ humidity55% |
| Total power | 27KW/380V | 28KW/380V | 41KW/380V | 64KW/380V |
| Full length | 17 | 17 | 18 | 18 |
| Total Weight | 3500 | 4000 | 4500 |
5000 |
