| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Automatic Grade: | Automatic | Production Capacity: | 300KG/H |
|---|---|---|---|
| Material: | 304 Stainless Steel | Power(W): | 27kw |
| Dimension(L*W*H): | 2300*1650*2100mm | Voltage: | 380V |
| Weight: | 4500kg | Advantage: | Easy Operation High Efficiency |
| Rated Depositing Times: | 60 N/min | Compressed Air Needed: | 0.25 M3/min |
| Depositing Speed: | 55~65n/min | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory |
| High Light: | Jelly Candy Making Machine,Jelly Candy production line,300KG/H Jelly Candy Production Line |
||

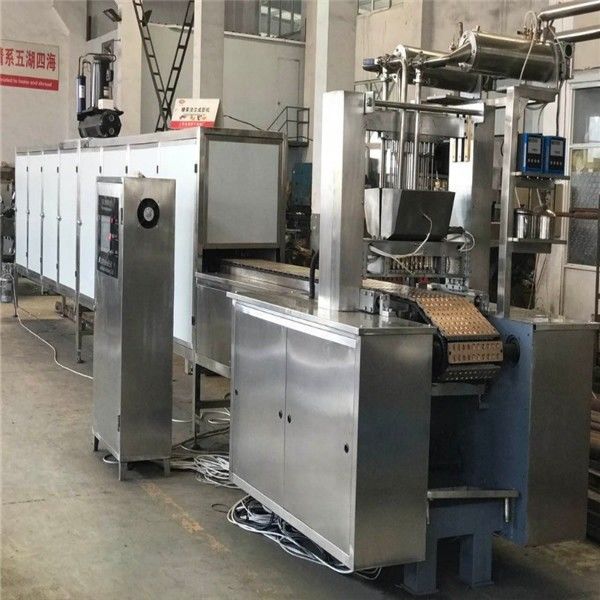

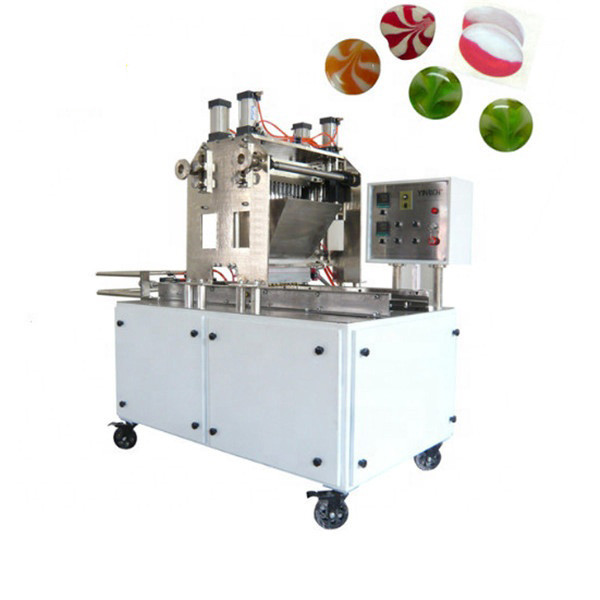

Jelly Candy / Hard Candy Making Machine Production Line
Product Description

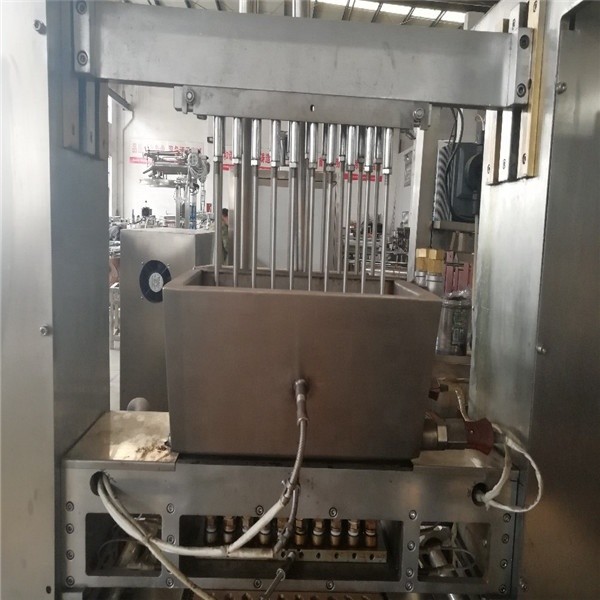

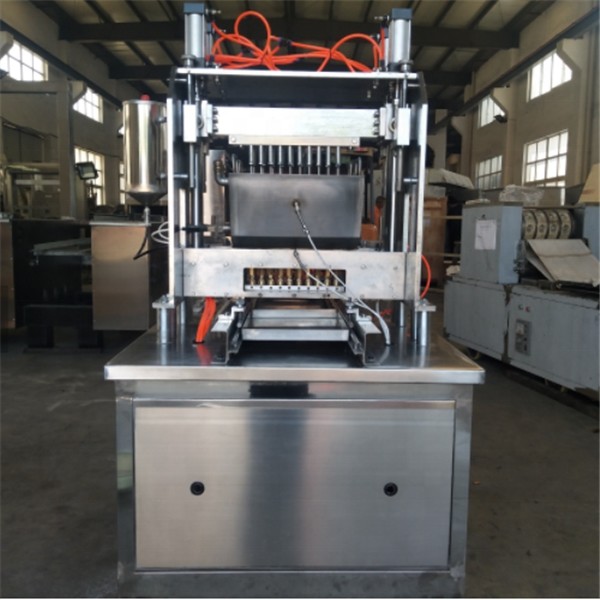

This processing line is an advanced plant for producing various shapes and colors of jelly candy . It is an ideal equipment for continuous production of high quality candy (QQ candy), such as single/double color QQ candy, By replacing the mould of the depositing head. It can produce jelly candy of high quality, various shapes and different colors. It can automatically blend the essence, pigment, acid liquor in accurate quantity ratio. Highdegree automation ensures of stale production and saves time, labor force and occupation to serve purpose of reducing the cost.
Parameter
|
Model |
HQ-150 |
HQ-300 |
|
|
Production capacity (kg/h) |
150 |
300 |
|
|
Rated Depositing times (n/min) |
60 |
||
|
Power (kw) |
8 |
12 |
|
|
Voltage (v) |
380 |
||
|
Compressed air needed |
m3/min |
0.2 |
0.25 |
|
mpa |
0.4-0.6 |
0.4-0.6 |
|
|
Weight of candy (g) |
two color |
1 - 6 |
|
|
one color |
|||
|
Dimension (mm) |
9400*1100*1800 |
10000*1600*1800 |
|
|
Weight |
4000 |
4500 |
|
