| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Toffee Candy Production Line | Diemension: | 17-18m |
|---|---|---|---|
| Power(W): | Depends On Models | Model: | JYT150/300/450/600 |
| Output: | 150-600kg/hr | Voltage: | 380V |
| Weight: | Depends On Models | Material: | 304 Stainless Steel |
| Usage: | Toffee Candy/Soft Candy | Applicable Industries: | Food & Beverage Factory |
| High Light: | toffee manufacturing machine,Toffee Candy Production Line,Automatic Toffee Maker Machine |
||
Full Automatic Production Line Toffee Candy Making Machine
Product Description
JYT series toffee candy production line is one of the main products of JUNYU MACHINERY. It was introduced and developed according to the demands of the customer.

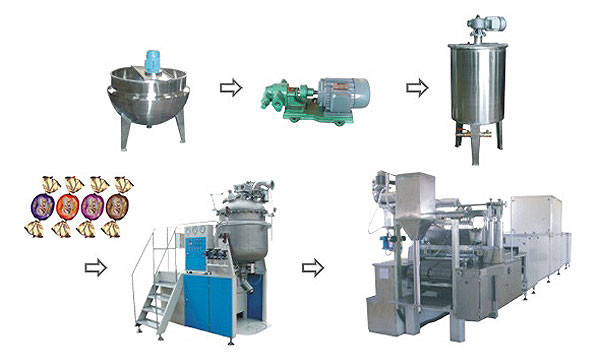

This line is mainly composed of sugar dissolving tank, storage tank., specially toffee candy cooking, automatic depositing machine and cooling tunnel etc.
Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Sugar and all other materials are automatic weighed, transferred and mixed through adjust touch screen. Various kinds of recipes can be programmed in the PLC and applied easily and freely when required..
4) PLC, touch screen and servo driven system are imported brand, more reliable and stable performance and durable use-life
5) Simple and compact machine structure, menu style operation interface, convenient operation and maintenance, high efficiency, low-noise, stable performance and long life.
6)We have different shape of mould, In our Production Design you can produce different shape toffee candy in the same line and in the same time in the same day.
|
Model |
JYT-150 |
JYT-300 |
JYT-450 |
JYT-600 |
|
Standard yield(kg/h) |
150 |
300 |
450 |
600 |
|
Maximum sugar weight |
6 |
6 |
6 |
6 |
|
Pouring speed(n/min) |
55~65 |
55~65 |
55~65 |
55~65 |
|
Steam demand
|
250kg/h 0.5~0.8MPa |
300kg/h 0.5~0.8MPa |
400kg/h 0.5~0.8MPa |
500kg/h 0.5~0.8MPa |
|
Compressed air demand
|
0.2m3/min 0.4~0.6MPa |
0.2m3/min 0.4~0.6MPa |
0.25m3/min 0.4~0.6MPa |
0.25m3/min 0.4~0.6MPa |
|
Working environment |
Temp20~25℃ humidity55% |
Temp20~25℃ humidity55% |
Temp20~25℃ humidity55% |
Temp20~25℃ humidity55% |
|
Total power |
32KW/380V |
39KW/380V |
48KW/380V |
75KW/380V |
|
Full length |
17 |
17 |
18 |
18 |
|
Total Weight |
3500 |
4000 |
4500 |
5000 |
