| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Toffee Hard Candy Making Machine | Dimension(L*W*H): | 5700X700X1700mm |
|---|---|---|---|
| Material: | Stainless Steel | Capacity: | 500~1000kgs Per Shift(8 Hours) |
| Voltage: | 380v | Usage: | Toffee Candy / Soft Candy |
| Depositing Speed: | 10-20n/mins | Weight: | 1500kg |
| Power(W): | 12kw | Feature: | High Efficiency |
| High Light: | 360kgs/h Toffee Maker Machine,Toffee Candy Production Line,Toffee Candy Manufacturing Machine |
||

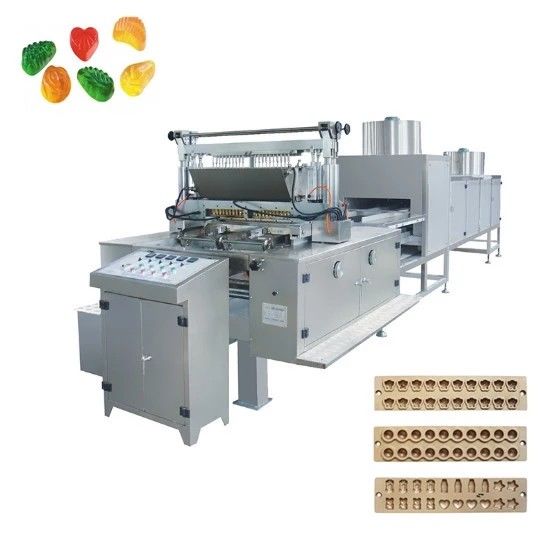

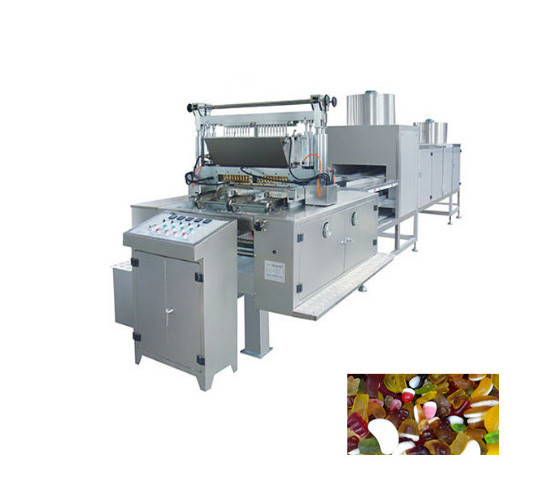

Toffee Candy Manufacturing Machine Soft Jelly Candy Depositor
Product Description
1. This machine can produce different kinds of deposited hard candies, jelly candies, toffees and other candies.
2. This machine has compact structure, stable performance and easy control.
3. The depositing volume can be adjusted optionally. This machine can run with step less speed adjustment as per the requirement.
4. This machine is installed with the automatic mould tracing and detecting device. No mould, no depositing.
5. This machine is controlled by program setting which can let the machine running smoothly and accurately.
6. Compressed air is the power for the machine’s running, and it can make the whole surrounding of operation to be sanitary, cleanliness and meet the requirement of GMP.
Main Features
1. Multi-purpose, suitable for pouring hard candy, gelatin candy, toffee, and various castable candy.
2. Compact structure, stable performance and convenient control.
3. The pouring amount can be arbitrarily selected, and the running speed can be steplessly adjusted as needed.
4. This machine is equipped with automatic mold tracking and detecting device, and no mold automatically stops pouring.
5. This machine adopts the control principle set by the program, which makes the pouring machine more stable and more accurate during the operation.
6. The working power of this machine is compressed air, the whole working environment is hygienic and clean, and it meets the GMP production requirements of food hygiene.
|
Technical parameters |
||||
|
Item Model |
GD-150 |
GD-300 |
GD-450 |
|
|
Output |
120kgs/h |
240kgs/h |
360kgs/h |
|
|
Sugar bloke weight |
15g |
15g |
15g |
|
|
Pouring times |
30-45n/min |
30-45n/min |
30-45n/min |
|
|
Steam |
Consumption |
250kgs/h |
300kgs/h |
400kgs/h |
|
Pressure |
0.2-0.6Mpa |
0.2-0.6Mpa |
0.2-0.6Mpa |
|
|
Compressed |
Consumption |
0.2m³/min |
0.4m³/min |
0.6m³/min |
|
Pressure |
0.4-0.6Mpa |
0.4-0.6Mpa |
0.4-0.6Mpa |
|
|
Environmental requirements |
Temperature |
20-25℃ |
20-25℃ |
20-25℃ |
|
Humidity |
55% |
55% |
55% |
|
|
Total power |
18kw/380v |
12kw/380v |
15kw/380v |
|
|
Production line total length |
9.5m |
11m |
12m |
|
