| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Lollipop Production Equipment | Weight(kg): | 800 KG; 1000KG |
|---|---|---|---|
| Power: | 16.2KW | Capacity: | 150KG/H; 300KG/H |
| Dimensions(L*W*H)mm: | 2000*1500*2100; 2000*1800*2100 MM | Condition: | New |
| Steam Pressure Needed: | 0.5-0.8MPa | Material: | Stainless Steel |
| Application: | CANDY | Certification: | CE |
| High Light: | Automatic Lollipop candy making machine,lollipop Candy production line,Lollipop Production Equipment |
||

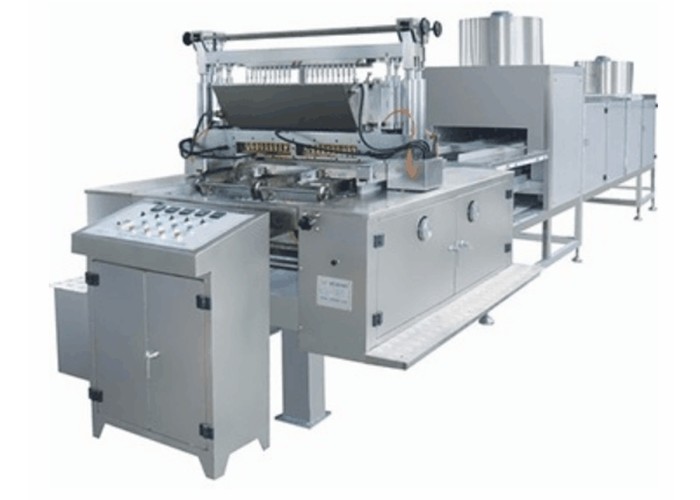

Fully Automatic Deposited Lollipop Candy Making Machine
Purpose And Characteristic
1. Deposited lollipop production line is one kind of art candy production equipment which suit for the large grain of candy shape.
2. This machine not only produting semin-solid and full solid lollipop but also producing normal lollipop.
3. Can producing single color,double color double flavor lollipop,stripe lollipop.
4. This machine with mechanic. Electric,pneumatic and candcel the cam system,construction tightly,designing reasonable.
5. with high automaticly,it is a perfect lollipop production equipment.
Main Technical Parameters:
| Capacity | 150KG/H; 300KG/H |
| Steam Consumption | 150KG/H; 300KG/H |
| Steam Pressure Needed | 0.5-0.8MPa |
| Total Power | 16.2KW |
| Depositing Speed | 55N/MIN |
| Total Power | 2KW; 3KW |
| Weight | 1600 KG; 1800KG |
| Dimension | 2000*1500*2100; 2000*1800*2100 MM |
| Machine Frame | 10mm thickness A3 carbon Steel. |
| Shell | 304 stainless steel. Thickness 1.5mm |
| Hopper | 316 stainless steel; Thickness 1.5mm |
| Storage tank and pipes | 316 stainless steel. Thickness 1.5mm |
| Total Power | 7KW; 8KW |
| Weight | 800 KG; 1000KG |
| Dimension | 8800*560*2200mm; 8800*820*2200 MM |
| Main machine frame | A3 carbon steel. 50*70*3 square tube |
| Top adopts | 1.5mm stainless steel |
| Bottom and side adopt |
Color steel heat-preservation |
The machine adopts continuous casting automatic demoulding, fan forced cooling and other devices, and is an integrated automatic pouring machine.
Scope of use:
Suitable for pouring soft (hard) sugars and lollipops of different shapes.
PROCESSING CHART:
Raw material melting , Conveying , Filter , Storage , Constant syrup conveying ,
Pre-heating , Micro-film vacuum cooking , Discharging , Mixing with flavor and Color Depositing , Cooling , De-moulding , Conveying , Packing
Finished Produts:
