| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Automatic Lollipop Production Line | Rated Output Speed: | 500 Pcs/min |
|---|---|---|---|
| Feature: | High Efficiency | Room Temperature: | 20-25℃ |
| Steam Pressure: | 0.5-0.8MPa | Power(W): | 24 |
| Voltage: | 380V | Weight: | 4500kg |
| Dimension(L*W*H): | 1460*960*1240mm | Applicable Industries: | Manufacturing Plant, Food & Beverage Factory |
| High Light: | Small Capacity Lollipop Production Line,Die formed Lollipop Production Line,Small Lollipop Making Machine |
||

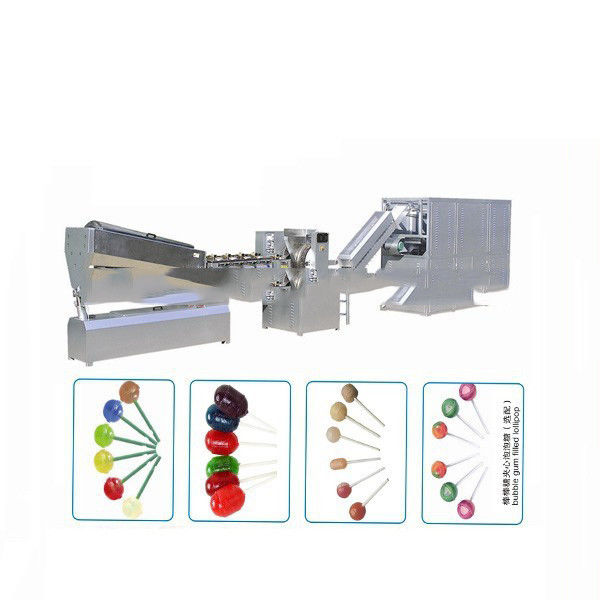

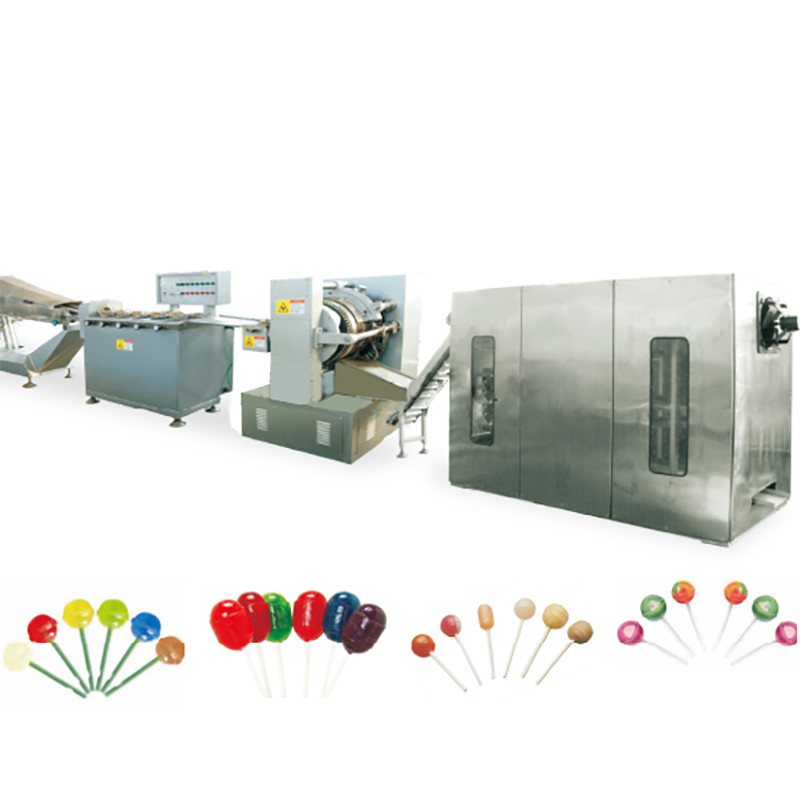

Small Capacity Die formed Lollipop Production Line
Products Description
1. Continuously vacuum cooker, guarantee the quality of sugar masses
2. Special forming style is better for central-filling.
3. Production capacity can be from 300 to 400kg/h.
4. Sanitary structure designed.
5. The central filler, rope sizer and former work together available.
6. Different candy shape can be made depend upon changing of the mould.
7. A better effect of cooling is available by the conveying and cooling system.
8. Lollipop can be made when the lollipop former is set instead of hard candy former.
Product Parameters
|
Model |
YT200 |
YT400 |
YT1000 |
|
Capacity |
150kg/h |
300kg/h |
600-1000kg/h |
|
Rated output speed |
500pcs/min |
1000pcs/min |
2000-4000pcs/min |
|
Max. Weight of the candy |
Shell: 7g(max)central-filling: 2g(max) |
||
|
Steam pressure |
0.5-0.8MPa |
||
|
Steam consumption |
200kgs/h |
300kgs/h |
400-600kgs/h |
|
Room temperature |
20-25℃ |
||
|
Humidity |
<55% |
||
|
Total electric power |
18kW/380V/50Hz |
30kW/380V/50Hz |
45-60kW/380V/50Hz |
|
Leight of the whole plant |
16m |
22m |
25-40m |
|
Gross weight(approx.) |
4500kg |
8000kg |
10000-15000kg |
