| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Lollipop Candy Production Line | Power(W): | 18KW To 45KW |
|---|---|---|---|
| Weight: | 3500kg - 5000kg | Voltage: | 220V/380V/460V |
| Capacity: | 150-750kg/h | Rated Output Speed: | 500 Pcs/min |
| Dimension(L*W*H): | 15100*2000*2500mm | Feature: | High Efficiency / Durable |
| Forming Type: | Depositing | Applicable Industries: | Food & Beverage Factory |
| Material: | Stainless Steel | ||
| High Light: | Lollipop Manufacturing Equipment,Lollipop Manufacturing Machine,Lollipop Production Line |
||

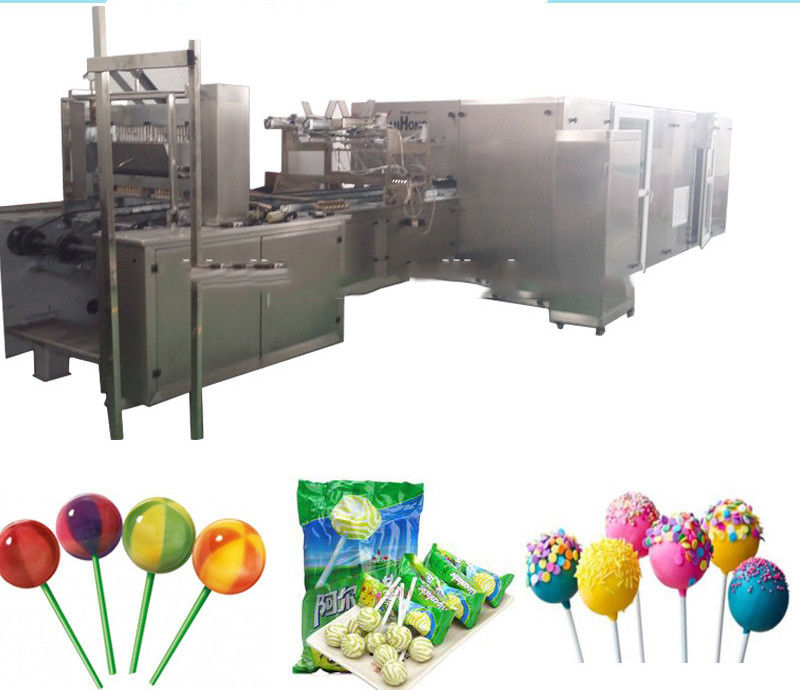

High Efficiency Commercial Lollipop Candy Making Machine
Specifications
Lollipop Candy Making Machine production line is producing spherical integration of professional machines from insulation trundle bed, pull the machine, lollipop forming machine and cooling sieve composition. Produce spherical, mushroomshaped, conical, cylindrical, rectangular and color, multicolor or sandwich lollipop. All kinds of fancy with the specific shape can be customized according to customer demand.
Characteristics
1. Sugar and all other materials are automatic weighed, transferred and mixed through adjust touch screen. Various kinds of recipes can be programmed in the PLC and applied easily and freely when required.
2. PLC, touch screen and servo driven system are imported brand, more reliable and stable performance and durable use-life.
3. Depositing volume (candy weight) can be changed easily through setting data on touch screen. More accurate depositing and continuous production makes minimal product wastage.
4. Simple and compact machine structure, menu style operation interface, convenient operation and maintenance, high efficiency, low-noise, stable performance and long life.
5. Ball and flat lollipop stick-insert machine for producing lollipop in the same line is optional.
Application

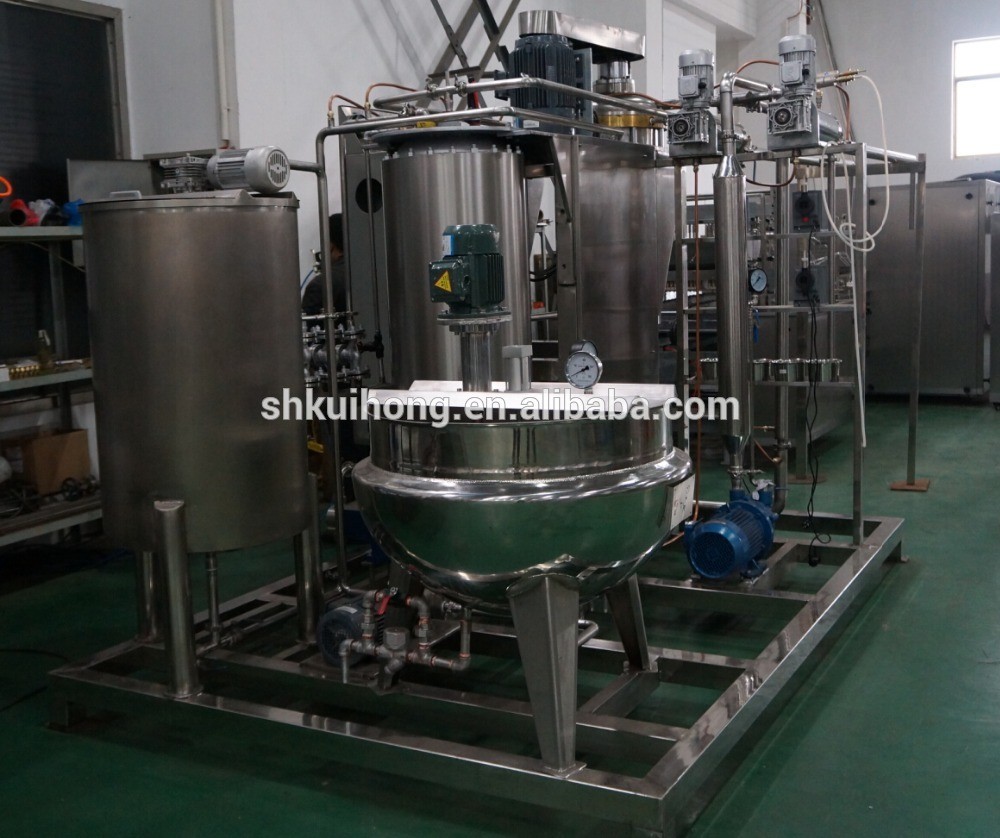

SE150/300/450/600/750 full automatic servo driven PLC controlled Lollipop candy depositing line is the most advanced production line for deposited Lollipop candy manufacturing. This line mainly consists of auto weighing and mixing system(optional), pressure dissolving system, micro-film cooker, depositor,stick insert machine and cooling tunnel and adopt the advanced servo system to control the processing.
Product parameters
|
Model |
SE150B |
SE300B |
SE450B |
SE600B |
|
Output |
150kg/h |
300kg/h |
450kg/h |
600kg/h |
|
Specification of the stick |
60-100mm |
60-100mm |
60-100mm |
60-100mm |
|
Depositing speed |
25-30n/min |
25-30n/min |
25-30n/min |
25-30n/min |
|
Steam requirement |
250kg/h 0.5-0.8Mpa |
300kg/h 0.5-0.8Mpa |
400kg/h 0.5-0.8Mpa |
500kg/h 0.5-0.8Mpa |
|
Compressed air requirement |
0.6m3/min 0.4-0.6Mpa |
0.6m3/min 0.4-0.6Mpa |
0.6m3/min 0.4-0.6Mpa |
0.6m3/min 0.4-0.6Mpa |
|
Working condition |
Temp: 20-25°C Humidity: 55% |
Temp: 20-25°C Humidity: 55% |
Temp: 20-25°C Humidity: 55% |
Temp: 20-25°C Humidity: 55% |
|
Total power |
18KW/380V |
27KW/380V |
34KW/380V |
38KW/380V |
|
Total length |
17m |
19m |
18m |
22m |
|
Gross weight |
3500kg |
4000kg |
4500kg |
5000kg |
