| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Automatic Pattern Lollipop Making Machine | Power(W): | 27kW |
|---|---|---|---|
| Voltage: | 380V | Steam Pressure: | 0.5-0.8MPa |
| Dimension(L*W*H): | 19000*1200*2100 | Rated Output Speed: | 500 Pcs/min |
| Feature: | High Efficiency / Durable | Steam Consumption: | 250kg/h |
| Weight: | 5000kg | Applicable Industries: | Food & Beverage Factory |
| Material: | Stainless Steel | Energy: | Electricity Diesel/ Steam /Gas, Durable |
| High Light: | Automatic lollipop depositing line,hard candy depositing line,Beverage Factory Lollipop Production Line |
||

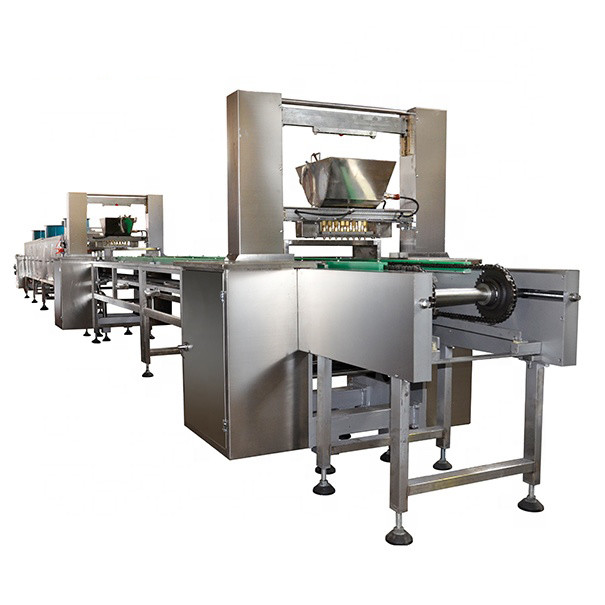

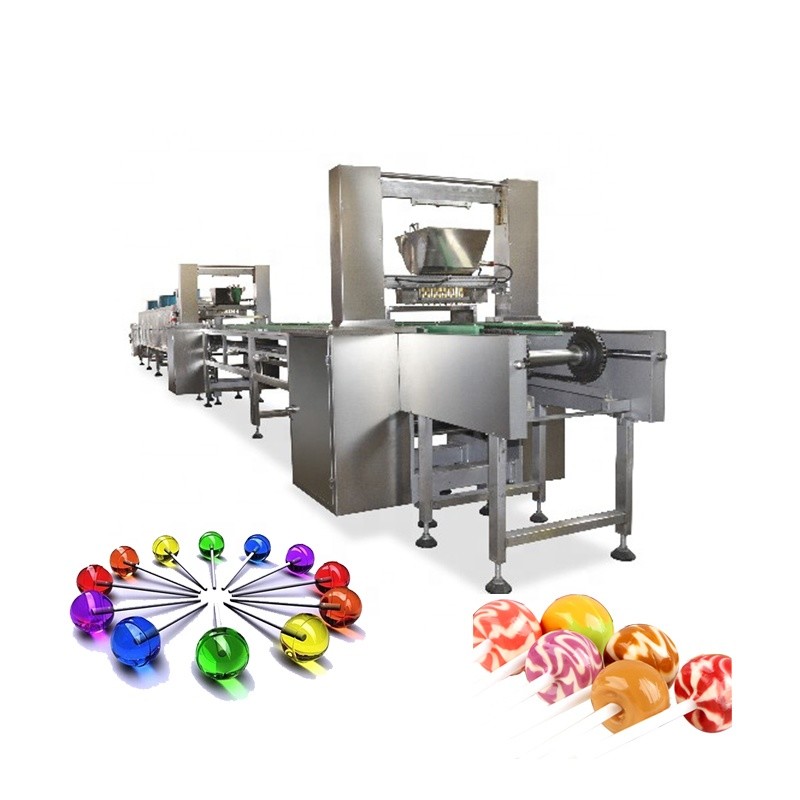

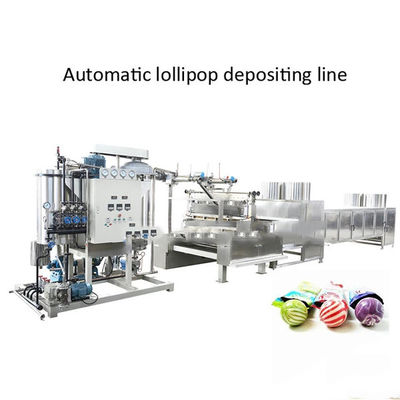

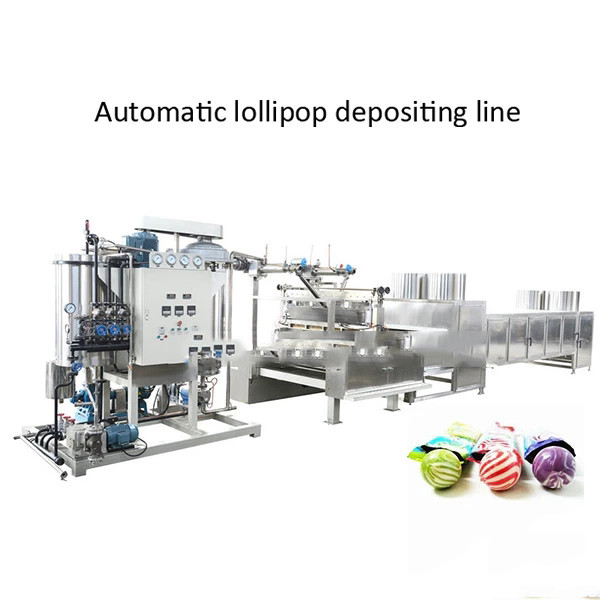

Beverage Factory Automatic Pattern lollipop depositing line
Product Description
This lollipop depositing line is designed based on the hard candy depositing line with more than 20 years' candy depositor fabricating experience. The 4th generation GD series lollipop depositing line is an upgrade machine against 3rd generation one. It is an advanced equipment which can continuously produce various kinds of lollipops under a strict sanitary condition.
Features:
1) Reliability, easy cleaning and maintenance;
2) Accurate filling and simple changeover;
3) Automatic belt tensioning.
Technical Parameters:
| Model | GD300XS |
| Output(kg/h) | 300 kg/h |
| Lollipop weight | Depends |
| Diameter of lollipop | Depends |
| Stick specification | Length: 60-100mm; Diameter:3.2-4.2mm |
| Depositing speed | 25~30 n/min |
| Steam consumption | 250kg/h, |
| Steam pressure | 0.5~0.8MPa |
| Compressed air consumption | 0.2m3/min, |
| Compressed air pressure | 0.4~0.6MPa |
| Working condition | Temperature:20~25℃;Humidity:55% |
| Electric power needed | 27KW/380V |
| Total length | 19000mm |
| Gross weight |
5000kg |
