| Place of Origin: | China |
|---|---|
| Brand Name: | OEM |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 15-25days |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Name: | Automatic Hard Candy Depositing Line | Dimension(L*W*H): | 6690*700*1400 Mm |
|---|---|---|---|
| Power(W): | 30KW | Automatic Grade: | Automatic |
| Material: | 304 Stainless Steel | Production Capacity: | 150-600kg/h |
| Voltage: | 380V | Weight: | 5000KG |
| Feature: | High Productivity | Type: | Fully Automatic |
| High Light: | Fully Automatic Hard Candy Making Machine,Small Capacity Hard Candy Making Machine,600kg/h Candy Making Machine |
||

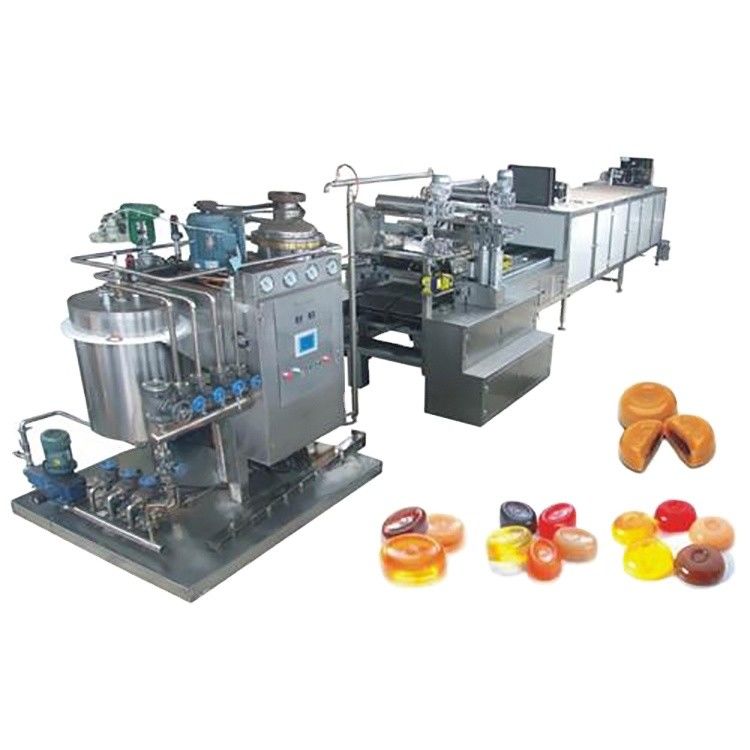

Small Capacity Fully Automatic Hard Candy Making Machine
1. Introduction of the whole production line:
The hard candy production line consists of an electric sugar pot, a cooling table, a heat preservation roller, a drawing machine, a forming machine, a cooling screen and a packaging machine, which can produce round and oval hard candy.The whole production line of electrical integrated control, easy to control the operation, is small and medium-sized ideal equipment for a candy factory.
2. Main technical parameters
Production: 150-500 kg/h
Whole line power: 5.4KW
Full line size :6690*700*1400 mm
3. Main production process
Boil sugar → cool it → roll sugar → pull the jelly into a sugar bar → punch the sugar bar into a round or oval hard candy → cool it → package the finished product
| Model | HNOC-150 | HNOC-300 | HNOC-450 | HQ-600 |
| standard production volume(kg/hour) | 150 | 300 | 450 | 600 |
| The sugar levels | 2-6g | 2-6g | 2-6g | 2-6g |
| pouring rate | 45-55n/min | 45-55n/min | 45-55n/min | 45-55n/min |
| Steam demand | 0.2m³/min, 0.4-0.6Mpa |
0.2m³/min, 0.4-0.6Mpa |
0.2m³/min, 0.4-0.6Mpa |
0.2m³/min ,0.4-0.6Mpa |
| Work environment requirements | Temperature:20-25℃ humidity :55% |
Temperature:20-25℃ humidity :55% |
Temperature:20-25℃ humidity :55% |
Temperature:20-25℃ humidity :55% |
| Total Power | 18kw/380V | 27kw/380V | 34kw/380V | 38kw/380V |
| Overall length | 15m | 17m | 17m | 20m |
| Overall weight | 3500kg | 4000kg | 4500kg | 5000kg |
